Introduction
There are currently two versions of the Himax ULP camera used on the AI-deck. A monochrome and a bayer-RGB. If you would like to switch the camera type or change it because it is broken these instructions will guide you though it.
1

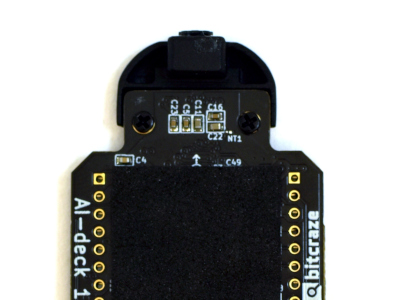

Unscrew the two philips screws.
2

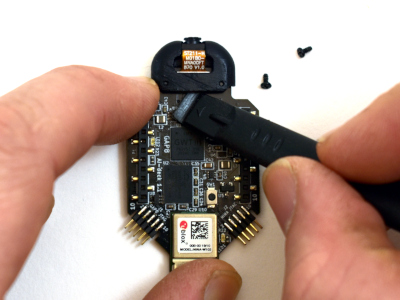

Remove the FPC cable by pulling the connector up with e.g. your nails or a plastic (non sharp) object.
3

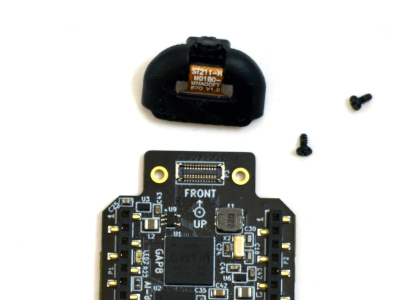

This will remove the camera mount and the camera module.
4

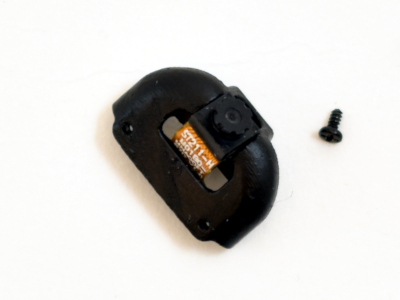

Gently pull up the camera which is squeezed into the pocket with some foam and remove it.
5

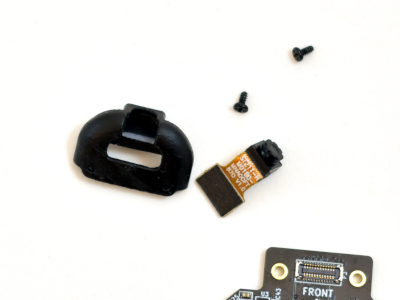

Take out the camera module from the camera mount.
6

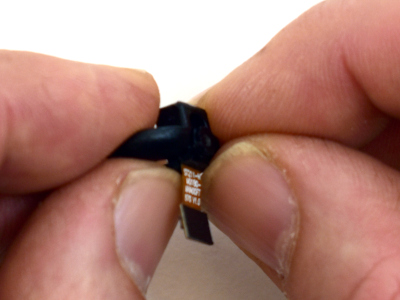

Fit the new camera by doing the opposite to 4, squeeze it gently into the pocket.
7

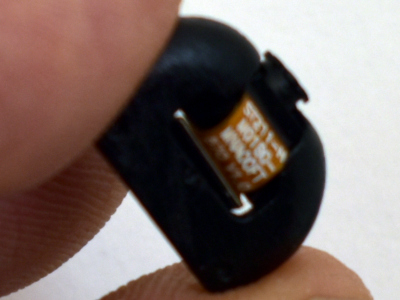

Thread the camera module connector through the camera mount hole. You can bend the flat cable but don’t force it into an 90 degree angle.
8

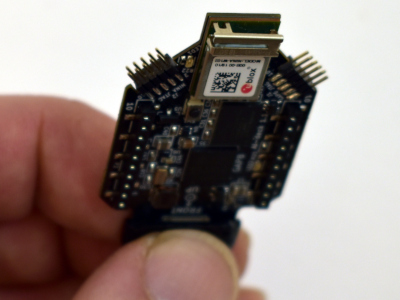

Attach connector by aligning it correctly and then squeezing the camera mount and PCB together.
9
Screw back the screws. Don’t tighten them too hard. DONE!
