Color LED deck

Powerful illumination

Light up your flights with vivid, customizable effects using the Crazyflie Color LED deck.

How it works

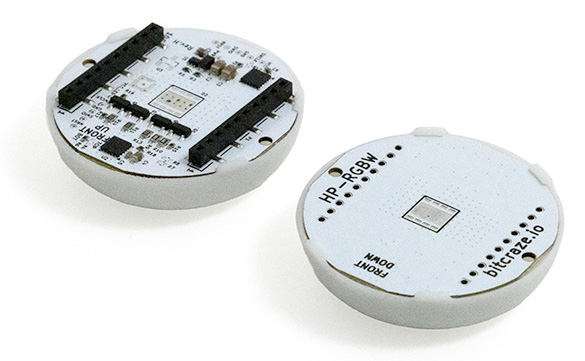

Add vibrant illumination and visual feedback to your flights with the Crazyflie Color LED Deck. Equipped with one powerful WRGB LED, it allows you to create bright, full-color lighting effects or status indicators directly from your Crazyflie firmware. Available in top- and bottom-mounted versions, the Color LED Deck is visible from the sides and perfect for experimentation, signaling, or simply lighting up your drone in style.

Follow the Getting started with the Color LED deck user guide to set up and test your Color LED deck.

Specifications

Features

  • One highly efficient high powered WRGB LED for maximum brightness
  • DC/DC driving circuitry for improved efficiency and consistent performance
  • A light diffuser for smooth, even illumination and wide visibility
  • Temperature protection
  • Automatic board detection
  • Compatible with the Crazyflie firmware to create custom patterns

Mechanical specifications

Bottom-mounted version
  • Weight: 3.5g with the diffuser
  • Size (WxHxD): 34.7x34.7x11.6mm with the diffuser
  • Designed for mounting under the Crazyflie facing downwards
Top-mounted version
  • Weight: 3.5g with the diffuser
  • Size (WxHxD): 34.7x34.7x10.2mm with the diffuser
  • Designed for mounting on top the Crazyflie facing upwards

Electrical specification

  • WRGB LED up to ~300mA per channel
  • STM32C011 MCU as the LED controller

Compatibility

See the compatibility matrix

Usage

Control your Color LED deck from CFclient’s Color LED tab. Choose your desired color, then take flight!

You can use a single deck (top or bottom), or attach both for maximum visibility. When using both decks, control each one independently to create unique color combinations or set them to the same color for a unified effect.

Documentation:

Tutorials:

Development

Firmware implementation

All the Color LED deck’s effects are implemented in the color LED deck driver.

Resources

If you have any further questions please contact support@bitcraze.io
