Laser ranging
Adds the possibility to fly with precise height control.
How it works

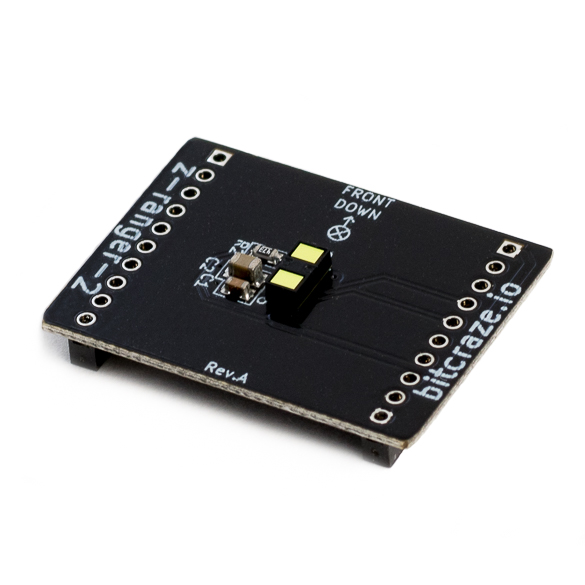

The Z-ranger deck V2 uses a laser sensor to measure the distance to the ground. The deck enables the Crazyflie to automatically maintain a constant distance to the objects under it when flying in automatic mode. Over a floor it will stay on the same height, but will follow the shape of a stair case up or down when going on adventures.
The maximum range for the ranger is 4 meters.
Specifications
Features
- Fast, accurate distance ranging
- Measures absolute range up to 4 m
- Eye safe
Mechanical specifications
- Weight: 1.6g
- Size (WxHxD): 21x28x4mm
- Designed for mounting under the Crazyflie 2.X
Electrical specification
- VL53L1x ToF sensor to measure distance up to 4 meters within a few millimeters (depending on surface and light conditions).
- 1-wire memory for automatic expansion deck detection
Compatibility
Usage
Follow the zranger tutorial
Development
Firmware implementation
The Z-ranger’s driver is currently implemented in the crazyflie firmware. Its measurement is mostly used for the Complementary Filter for state estimation.
