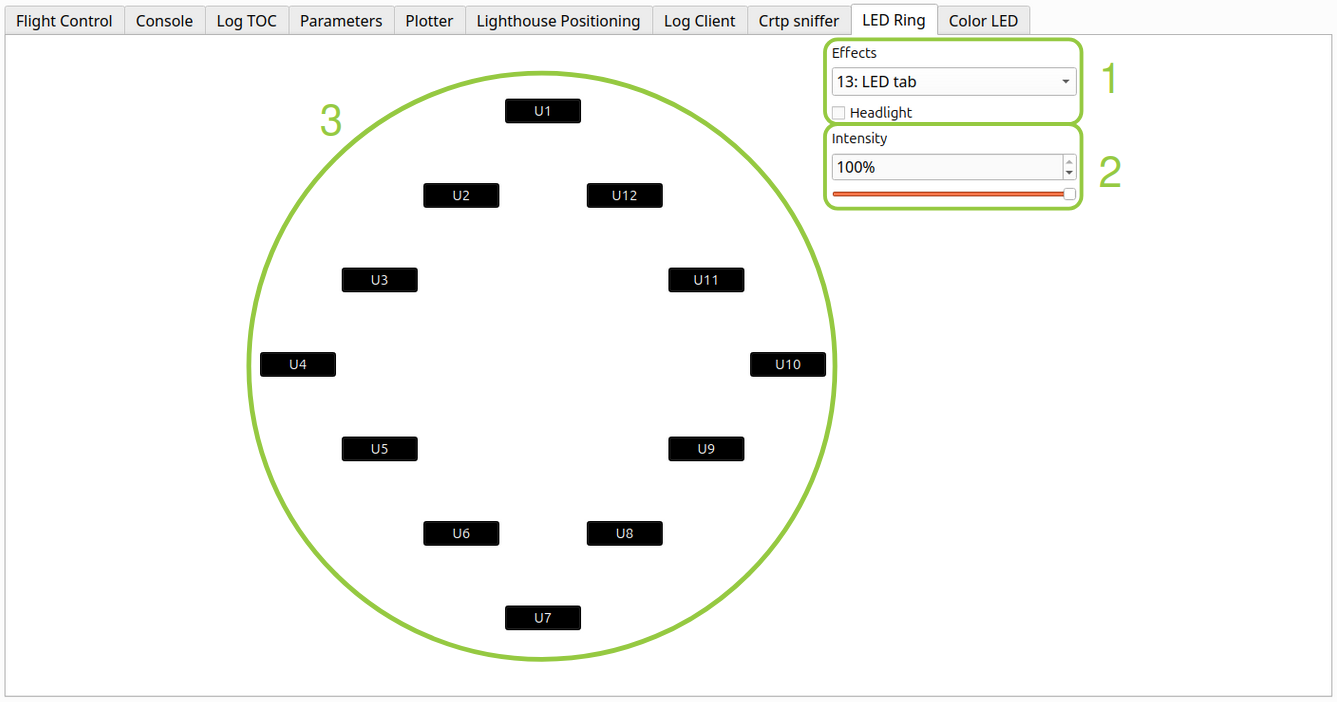

The LED Ring tab lets you control the LED-ring deck attached to your Crazyflie. Choose from a variety of built-in patterns or customize each of the 12 individual LEDs to create your own lighting setup.
The tab is divided into 3 sections:
- Lighthing Effects
- Intensity
- Individual LEDs
1. Lighthing Effects
Select the desired lighting effect for your deck from a variety of built-in patterns. Check the Headlight box to turn on the front-facing LEDs on the LED-ring deck.
2. Intensity
Available only for the LED tab effect. Use this control to adjust the overall brightness of the LEDs.
3. Individual LEDs
Available only for the LED tab effect. Select a custom color for each of the 12 individual LEDs on the LED-ring deck.
